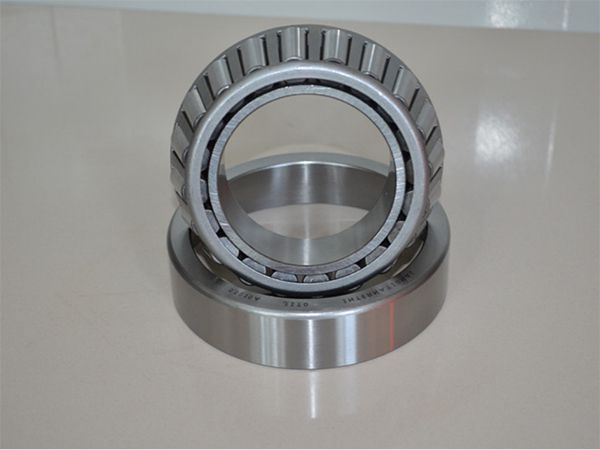

Tapered Roller Bearings
Tapered roller bearings are separate rooling element bearings, with the inner and outer rings having tapered raceways. Available in various structural configurations, including single row, double row, and four-row designs, these bearings accommodate differing load and performance requirements. Single row tapered roller bearings excel in withstanding radial loads and axial loads in one direction. However, under radial loads, they generate axial components, necessitating a complementary bearing capable of handling axial forces in the opposite direction to achieve balance and optimal performance.
-
Single Row Tapered Roller BearingsSingle row tapered roller bearings are primarily used to support rotational motion between shafts and bearing housings, reducing friction and providing support through rolling elements.
-
Double Row Tapered Roller BearingsDouble row tapered roller bearings are an important type of bearing characterized by a arrangement of tapered rollers between the inner and outer rings, capable of simultaneously bearing radial and axial loads in both directions.
-
Four Row Tapered Roller BearingsFour row tapered roller bearings are a type of bearing with high precision and high load-carrying capacity, featuring four rows of tapered rollers arranged between the inner and outer rings.
- Bearing type: Taper roller bearing
- Material: Chrome steel GCr15
- Precision: P0, P2, P5, P6, P4
- Clearance: C0, C2, C3, C4, C5
- Bearing size: Inner diameter 0-200mm, outer diameter 0-400mm
- Cage material: Brass, steel, nylon, etc.
- Long service life with high quality
- Low noise with strict quality control of JITO bearings
- High load by the advanced high-technical design
- Competitive price, adding value to customer's production
- OEM service offered to meet the customers' requirements
Tapered roller bearings typically feature a separate construction, comprising a conical inner ring assembly consisting of an inner ring with rollers and a cage assembly, which can be mounted independently from the outer cone (outer ring). Tapered roller bearings are widely used in automobiles, rolling mills, mining, metallurgy, plastic machinery and other industries.
