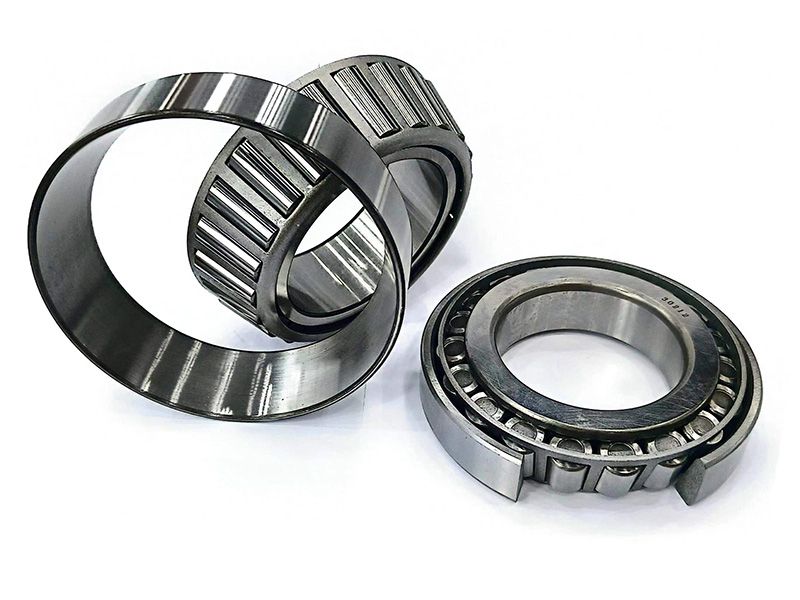

Single Row Tapered Roller Bearings
Single row tapered roller bearings are primarily used to support rotational motion between shafts and bearing housings, reducing friction and providing support through rolling elements. They can support radial and axial loads in one direction and transfer forces and torque between the shaft and housing.
- Material: Chrome steel GCr15
- Bearing size: Inner diameter 0-200mm, outer diameter 0-400mm
- Cage material: Brass, steel, nylon, etc.
| Bearing No. | Dimensions (mm) | Weight (kg) | ||
| d | D | T | ||
| 32004X | 20.00 | 42.00 | 15.00 | 0.095 |
| 32005X | 25.00 | 47.00 | 15.00 | 0.110 |
| 32006X | 30.00 | 55.00 | 17.00 | 0.170 |
| 32007X | 35.00 | 62.00 | 18.00 | 0.224 |
| 32008X | 40.00 | 68.00 | 19.00 | 0.267 |
| 32009X | 45.00 | 75.00 | 20.00 | 0.337 |
| 32010X | 50.00 | 80.00 | 20.00 | 0.366 |
| 32011X | 55.00 | 90.00 | 23.00 | 0.551 |
| 32012X | 60.00 | 95.00 | 23.00 | 0.584 |
| 32013X | 65.00 | 100.00 | 23.00 | 0.620 |
| 32014X | 70.00 | 110.00 | 25.00 | 0.839 |
| 32015X | 75.00 | 115.00 | 25.00 | 0.875 |
| 32016X | 80.00 | 125.00 | 29.00 | 1.270 |
| 32017X | 85.00 | 130.00 | 29.00 | 1.320 |
| 32018X | 90.00 | 140.00 | 32.00 | 1.720 |
| 32019X | 95.00 | 145.00 | 32.00 | 1.700 |
| 32020X | 100.00 | 150.00 | 32.00 | 1.850 |
| 32021X | 105.00 | 160.00 | 35.00 | 2.400 |
| 32022X | 110.00 | 170.00 | 38.00 | 3.020 |
| 33006 | 30.00 | 55.00 | 20.00 | 0.201 |
You can download PDF for details.
| Bearing No. | Dimensions (mm) | Weight (kg) | ||
| d | D | T | ||
| 11590/11520 | 15.875 | 42.862 | 14.288 | 0.100 |
| 09062/09195 | 15.875 | 49.225 | 19.845 | 0.200 |
| 11749/11710 | 17.462 | 39.878 | 13.843 | 0.080 |
| 11949/11910 | 19.050 | 45.237 | 15.494 | 0.120 |
| 09067/09195 | 19.050 | 49.225 | 18.034 | 0.170 |
| 09067/09194 | 19.050 | 49.225 | 21.209 | 0.180 |
| 09067/09196 | 19.050 | 49.225 | 21.209 | 0.190 |
| 09081/09195 | 20.625 | 49.225 | 19.845 | 0.170 |
| 12580/12520 | 20.638 | 49.225 | 19.845 | 0.180 |
| 12649/12610 | 21.430 | 50.005 | 17.526 | 0.160 |
| 12749/12710 | 21.986 | 45.237 | 15.494 | 0.120 |
| 12749/12711 | 21.986 | 45.974 | 15.494 | 0.120 |
| 07087X/07196 | 22.225 | 50.005 | 13.495 | 0.130 |
| 12648/12610 | 22.225 | 50.005 | 17.526 | 0.170 |
| 1380/1328 | 22.225 | 52.388 | 19.368 | 0.200 |
| 1380/1329 | 22.225 | 53.975 | 19.368 | 0.220 |
| 1280/1220 | 22.225 | 57.150 | 22.225 | 0.280 |
| 44649/44610 | 23.812 | 50.292 | 14.224 | 0.120 |
| 07096/17196 | 25.159 | 50.005 | 13.495 | 0.110 |
| 44642/44610 | 25.400 | 50.292 | 14.224 | 0.110 |
You can download PDF for details.
-
High load capacity
Single row tapered bearing is designed to withstand high radial and axial loads, suitable for various operating conditions. -
Excellent wear resistance
With high-quality materials and precision processing, this tapered roller bearing exhibit good wear resistance and durability, maintaining stable performance over extended periods. -
Adjustable functionality
The angle between the inner and outer rings of the bearing can be adjusted to accommodate different axial loads and assembly errors, greatly enhancing the flexibility in assembly and use. -
High-speed capability
Optimized design and bearing geometry enable the single-row tapered roller bearings to operate at high speeds, suitable for high-speed rotating environments.
Due to their high load capacity, excellent wear resistance, and adjustable functionality, single row tapered roller bearings are typically used in automotive industries, construction machinery, aircraft & aerospace, railway transportation, agricultural machinery, wind power generation, and other fields. They are specifically applied in components such as automotive differentials, hub assemblies, mechanical steering systems, mechanical transmission systems, and hydraulic pumps.
What is rolling bearings?
Rolling bearings employ a cylindrical roller design, which, compared to ball bearings, allows for the distribution of loads over a larger surface area. They are often more suitable for heavy-load applications.
What are the advantages of cylindrical roller bearings?
Cylindrical roller bearings offer outstanding performance, reliability, and longer lifespan. Theis bearing is tailored to meet the rigorous demands of heavy-duty applications, ensuring efficient machine operation and reducing downtime.
What are rolling bearings and why are they important?
Rolling bearings are mechanical components designed to reduce friction between moving parts and facilitate smooth motion in machinery. Unlike sliding bearings, rolling bearings use cylindrical, needle, or tapered rollers to carry and distribute loads. This rolling action minimizes friction, heat, and wear, making rolling bearings crucial for efficient operation across various industrial applications.
